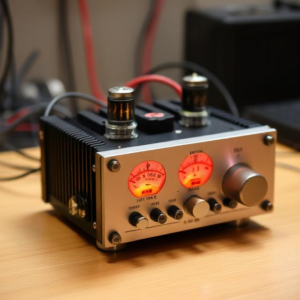

A Power Amplifier is an electronic device designed to increase the power of a signal, usually to drive a load like speakers, antennas, or other electronic systems that require a higher signal strength. The basic function of a power amplifier is to take a weak input signal and amplify it to a level that can be used to drive larger devices or systems.
Key Components:
- Input Signal: This is a weak electrical signal, for example, from a microphone, a guitar, or a radio receiver. It is not strong enough to do the work on its own.
- Amplification Process: The power amplifier uses an active component (such as a transistor or tube) to increase the amplitude (strength) of the input signal. The amplifier essentially uses energy from an external power supply to boost the signal.
- Output Signal: The result is a much stronger version of the original signal that can now be used to power devices that require more power, like speakers, radios, or television transmitters.
How It Works:
- The input signal is fed into the amplifier.
- The amplifier uses a power supply to provide energy that will boost the signal.
- The transistor or other active components amplify the signal by controlling the flow of current.
- The stronger, amplified signal is then sent out through the output to drive the load.
Types of Power Amplifiers:
- Class A: These amplifiers are always on and are known for their high-quality sound. However, they are inefficient and produce a lot of heat.
- Class B: These amplifiers are more efficient than Class A but can produce some distortion in the signal.
- Class AB: These combine the best of Class A and Class B, offering a good balance between sound quality and efficiency.
- Class D: These are very efficient and are often used in modern audio systems or RF (Radio Frequency) applications, but they can sometimes sacrifice sound quality.
Applications:
- Audio systems: Power amplifiers are used in home audio systems, car audio, and public address systems to make the sound loud enough to be heard clearly.
- Radio and TV transmitters: They amplify signals that are transmitted to antennas for broadcast.
- Cell phones: They help amplify signals for better communication over long distances.
Efficiency:
One important factor to consider with power amplifiers is efficiency. Amplifiers use electrical power from a power source, and not all of it goes into amplifying the signal. Some of it gets lost as heat, so designing an efficient amplifier is crucial, especially in portable or battery-powered devices.
In simple terms, a power amplifier is like a loudspeaker for electrical signals. It takes a small, weak signal and makes it strong enough to do something useful, like powering speakers or transmitting a signal over long distances.
